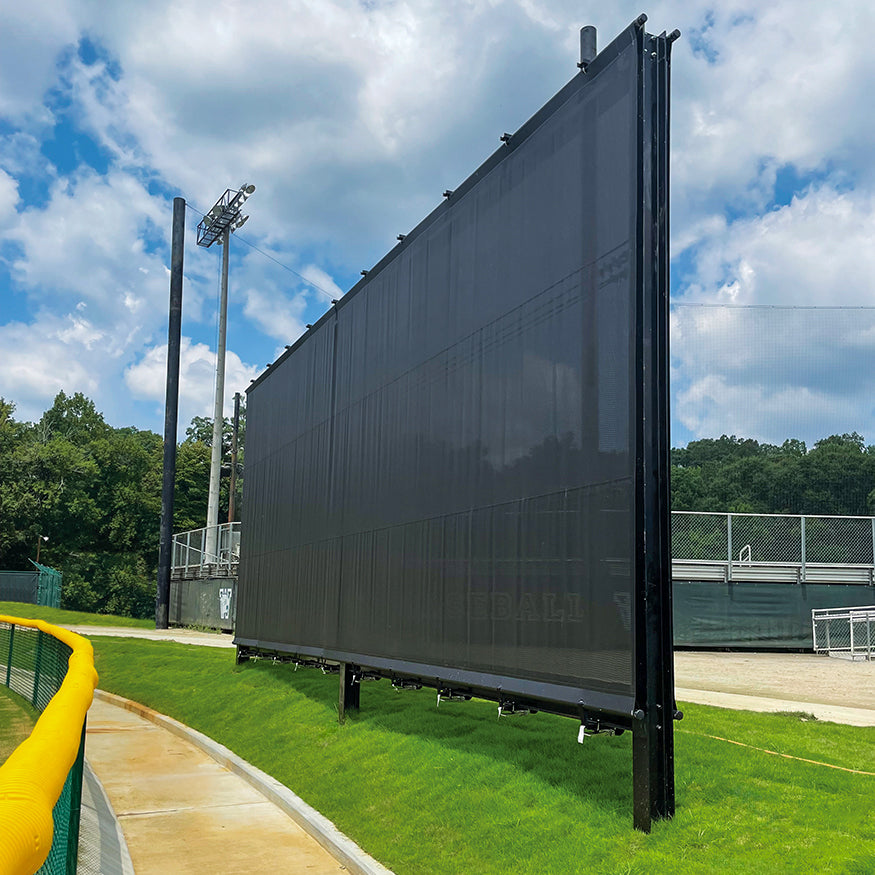

• A Jaypro Outfield Batter's Eye (20' x 40') with a large black mesh on a metal frame stands on green grass by a sports field, with trees, fencing, and stadium lights visible under a partly cloudy sky.

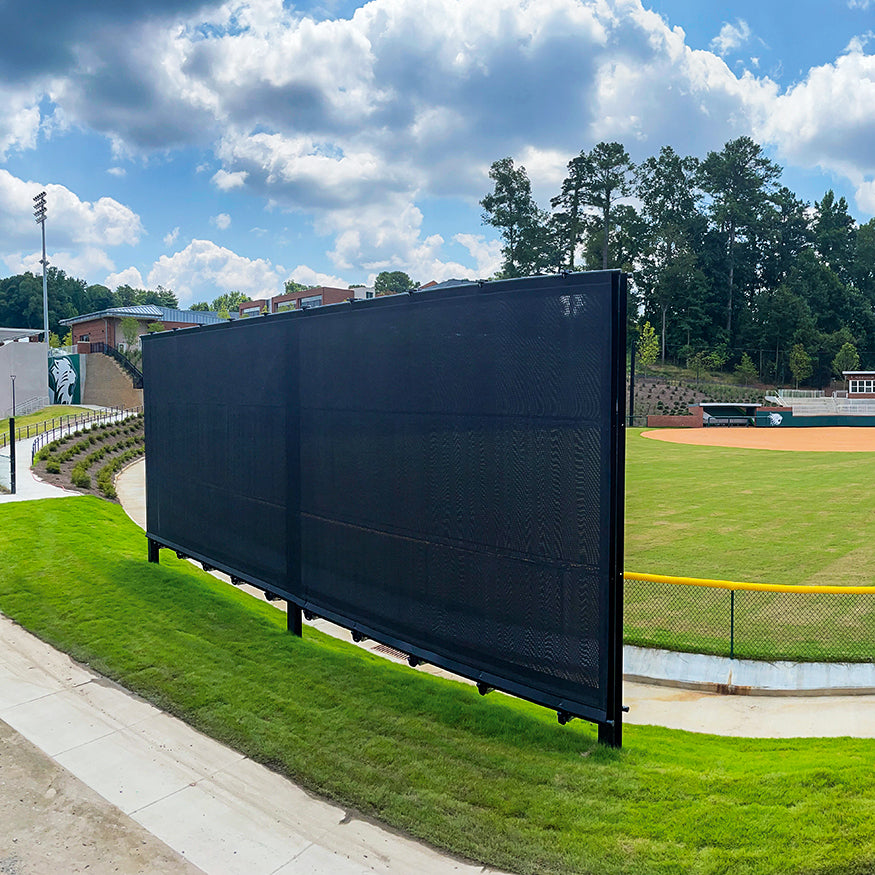

  • The Jaypro Outfield Batter's Eye (20' x 40') is a large black mesh windscreen along a baseball field fence, with green grass, trees, and a sidewalk under a partly cloudy sky in the background.

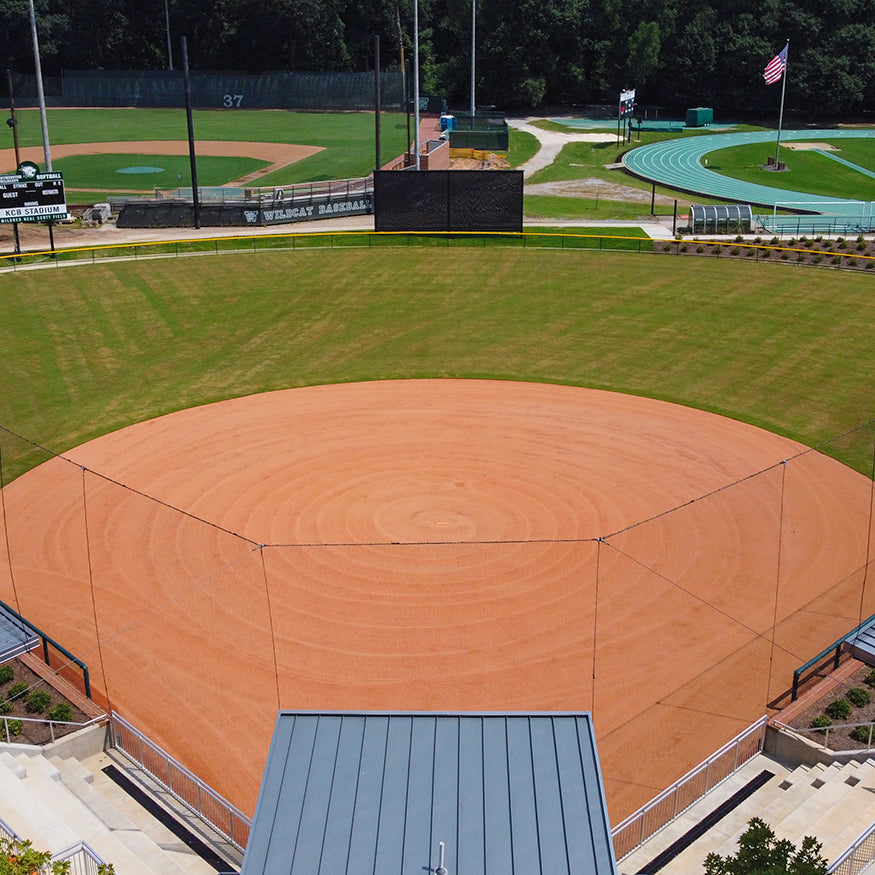

  • A well-kept baseball field features a dirt infield, lush green outfield, and the Jaypro Outfield Batter's Eye (20' x 40'). Empty bleachers are in front, with a scoreboard, running track, and an American flag visible in the background.

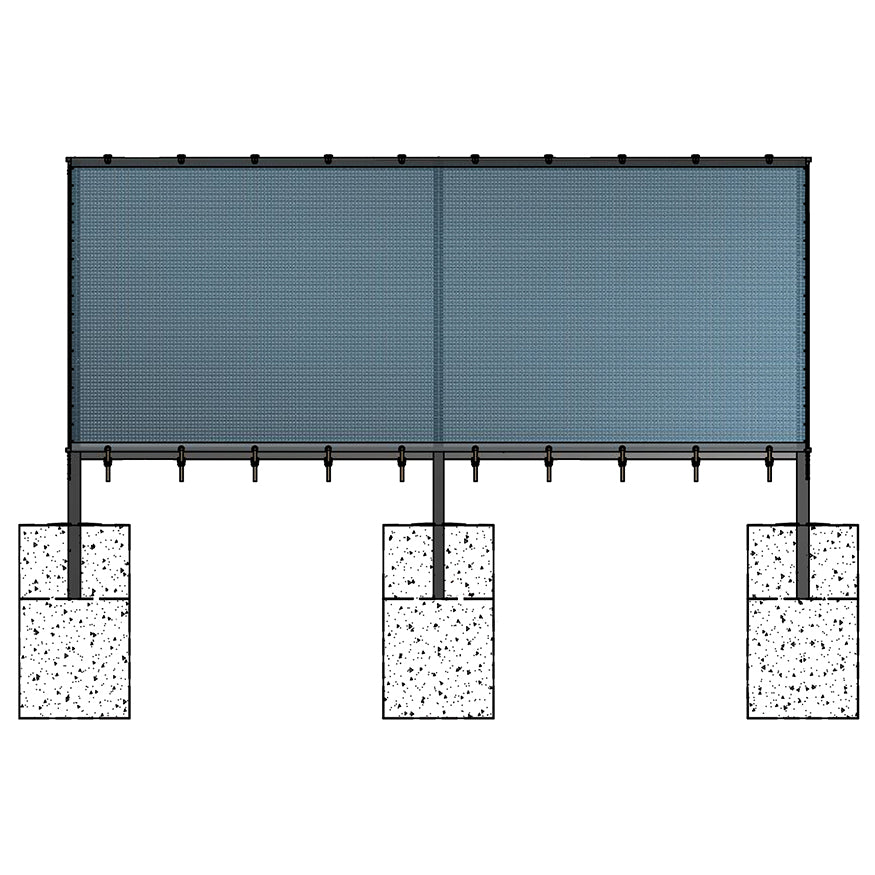

  • A Jaypro Outfield Batter's Eye (20' x 40'), featuring a rectangular blue mesh, is installed on a black metal fence with three concrete bases, fully covering the fence like a ballpark visual background.
1 4

Jaypro Outfield Batter's Eye | 20'' x 40'

Jaypro Outfield Batter's Eye | 20'' x 40'

JP-BE-24

$0.00
$0.00 $0.00
list price
Sale Sold out
Sign up for free and unlock exclusive member pricing — 16% off our list prices every day
Lower pricing available — for Keeper Goals Club members. Learn more >

A batter's eye is one of the most functional elements of a well-designed ballpark, and one of the most commonly underspecified. Its purpose is straightforward: give hitters a clean, dark, uncluttered visual background beyond center field so they can pick up the ball out of the pitcher's hand. When it's built right, it improves plate performance and gives your facility a polished, professional appearance. When it's built with inferior materials, it becomes a maintenance liability within a few seasons.

The Jaypro Outfield Batter's Eye (BE-24) is a complete, structural system built for high school, collegiate, and professional-level ballparks. The frame is constructed from zinc-primed, powder-coated black steel I-beams, engineered to hold their shape and resist corrosion through years of outdoor exposure. Front and back single-piece windscreen panels of vinyl-coated polyester mesh stretch taut across the frame, creating a consistent, solid visual backdrop with no gaps or loose sections. The system meets the ASCE 7 105 MPH wind rating (Exposure C), a meaningful structural standard for any permanent outfield installation.

All hardware is included. The windscreen panels are also replaceable, extending the usable life of the structural frame significantly beyond that of the screens themselves. This is a system designed to be a permanent part of your facility, not a temporary fix.

Key Features

  • Zinc-Primed, Powder-Coated Black Steel I-Beam Frame - Structural-grade steel construction; primed and powder-coated for maximum corrosion resistance and long-term durability in outdoor environments.
  • Double Single-Piece Black Windscreen Panels (Front & Back) - Vinyl-coated polyester mesh panels provide a solid, uninterrupted dark backdrop that gives hitters a clear sightline to the pitcher.
  • ASCE 7 105 MPH Wind Rating (Exposure C) - Independently rated to withstand high-wind conditions; appropriate for permanent outfield installations at all levels of play.
  • Replaceable Windscreen Panels - Panels can be replaced independently of the frame, protecting the long-term value of the structural system.
  • Complete System — Includes all hardware necessary for installation.
  • Custom Colors & Graphics Available - Windscreen color and team graphics options are available; contact us for details.

Specifications

Specification Detail
Overall Height 20 ft.
Overall Width 40 ft.
Wind Rating ASCE 7 105 MPH, Exposure C
Windscreen Panels 2 (front and back); single-piece per panel
Hardware Included
SKU BE-24

Materials

Component Material Why It Matters
Frame Zinc-primed, powder-coated black steel I-beams Structural-grade steel with a two-stage corrosion-resistant finish; built for permanent outdoor installation
Windscreen Panels Vinyl-coated polyester mesh (black) Durable, weather-resistant mesh that creates a consistent dark visual backdrop; replaceable to extend system longevity

Options & Upgrades

Option Details Notes
Custom Windscreen Color Non-standard windscreen colors available Contact us for options and pricing
Custom Graphics Team or facility branding on windscreen panels Contact us for options and pricing
Replacement Panels Front and back windscreen panels available separately Contact us for details

Installation Note

The Jaypro Batter's Eye (BE-24) is a structural system requiring professional installation. All hardware is included. If you have questions about site preparation, post embedment, or installation requirements specific to your facility, contact us before ordering and we can help you plan accordingly.

Shipping

  • Ships via freight truck. Due to the structural nature of this product, professional installation is required on-site.
  • A lift gate fee may apply if a forklift or loading dock is not available at your facility.
  • For large orders or multiple units, contact us to discuss freight options.
  • School purchase orders and booster club orders accepted.

Ready to Complete Your Outfield?

A properly specified batter's eye is one of the best investments a program can make in player safety and field quality. The Jaypro BE-24 is a permanent, structural solution built to perform at the high school, collegiate, and professional levels. If you have questions about sizing, installation planning, or custom options, we're here to help you make the right call for your facility.
